Semi Shrink Wrapping Machine

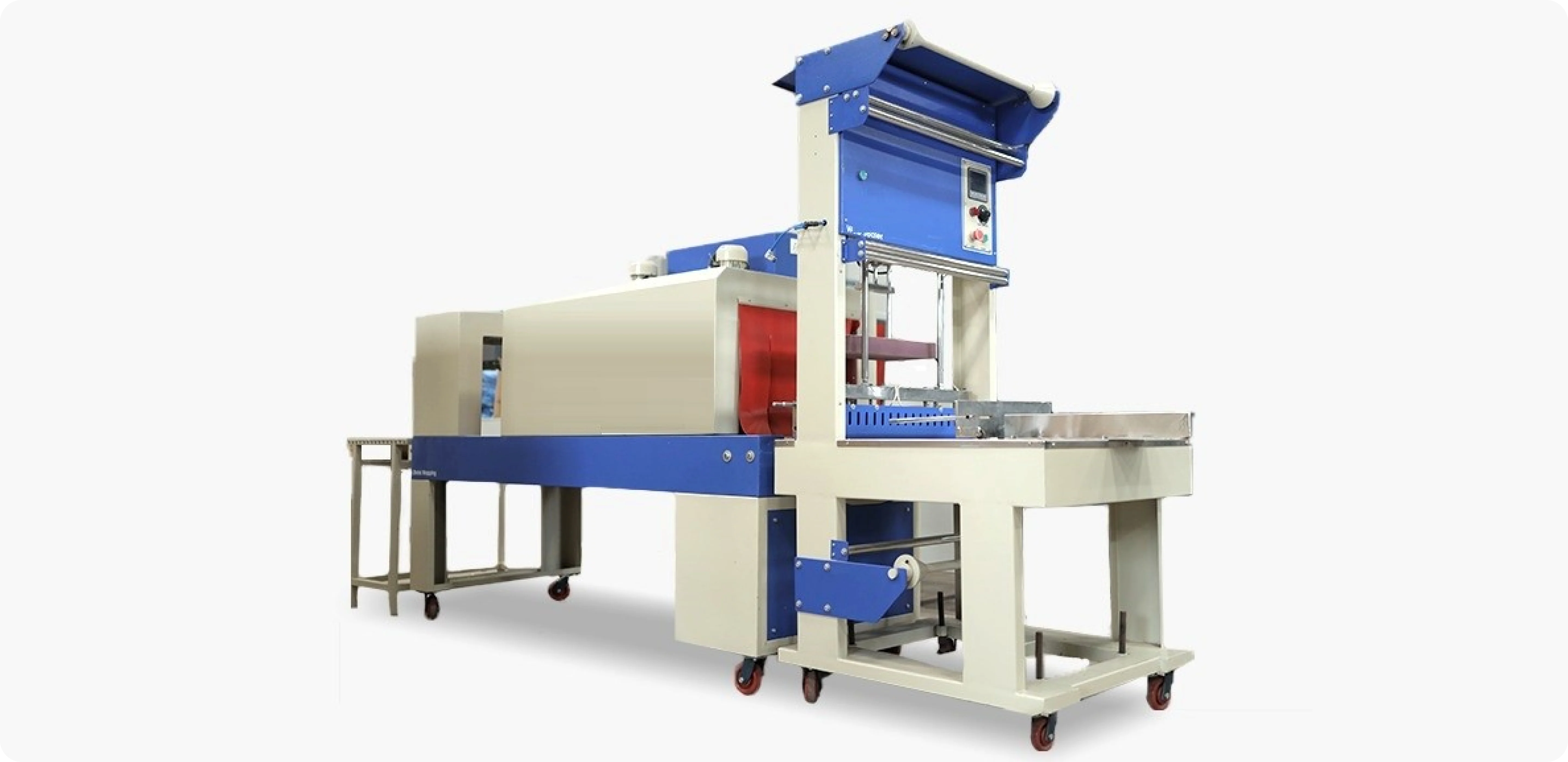

Semi-Automatic Shrink-Wrapping Machine with Web Sealer & Shrink Tunnel

Our Semi-Automatic Shrink-Wrapping Machine is a reliable and cost-effective solution designed for group packaging of products using PE shrink film. It includes a web sealer and a high-performance shrink tunnel, making it ideal for medium-volume packaging applications across various industries such as food, beverages, pharmaceuticals, cosmetics, printing, and hardware.

This machine is capable of collating and wrapping multiple product types, including round and square bottles, cans, gable cartons, and tetra cartons, into bundles of 6, 12, 18, or 24 units based on your specific production requirements.

Yes! I am Interested

Key Features:

  • Versatile Application – Suitable for bottles, cans, cartons, and other rigid containers
  • Web Sealing System – Ensures strong sealing and precise film cutting for group packing
  • Semi-Automatic Operation – Manual or pneumatic feeding and alignment of products
  • Shrink Tunnel with Conveyor – Ensures uniform film shrinking using hot air circulation
  • Sturdy Roller Exit Table – Smooth output of finished, shrink-wrapped bundles
  • Robust Construction – Made with durable materials for long-term industrial use
  • Compact Footprint – Space-saving design, easy to integrate into existing production setups
  • Energy Efficient – Optimized heating system reduces power consumption

Working Process:

  1. Manual or Pneumatic Product Loading – Operator aligns products (bottles, cartons, etc.) in desired matrix (e.g., 3x2, 4x3).
  2. Web Sealing & Cutting – PE shrink film wraps the group and is sealed and cut using the web sealer.
  3. Shrink Tunnel Entry – The sealed pack enters the shrink tunnel via conveyor.
  4. Shrink Wrapping – Heat inside the tunnel causes the film to shrink tightly around the group.
  5. Exit on Roller Table – The wrapped product exits via a roller conveyor, ready for packing or dispatch.

Technical Specifications:

Parameter Specification
Machine Type Semi-Automatic Web Sealing & Shrink-Wrapping Machine
Product Types Supported Bottles (Round/Square), Cans, Gable/Tetra Cartons
Packing Formats 6, 12, 18, 24 (customizable)
Film Type PE Shrink Film
Film Thickness 60–80 microns
Power Supply 220V/380V, 3 Phase, 50/60 Hz
Power Consumption Approx. 10–15 kW (depending on tunnel size)
Shrink Tunnel Temperature Adjustable up to 180°C
Control System Manual or Pneumatic (based on model)
Construction Material MS Powder-Coated / Stainless Steel (optional)
Output Conveyor Roller Table

Applications:

  • Beverage Industry – Mineral water bottles, soft drinks, juices
  • Food Industry – Sauce bottles, canned goods, gable-top cartons
  • Pharmaceuticals – Grouped medicine bottles or cartons
  • Cosmetics – Cream jars, lotion bottles
